Radial Pattern Axis Circle


How do you create a radial pattern of holes or features in a part such that when you detail the features in a drawing you will get a radial axis pattern on the drawing?

Mark Dristy, PE – Marc Edward LLC

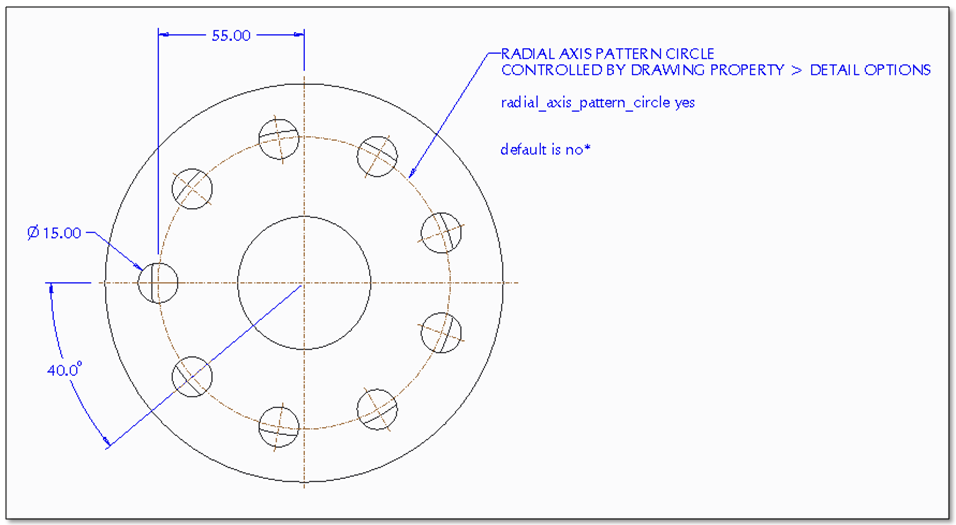

The radial pattern axis circle display in the drawing is defined using the drawing option radial_pattern_axis_circle.  The default value for this option is no.
